5 Adjustment of the Zoom

1. Steering bar

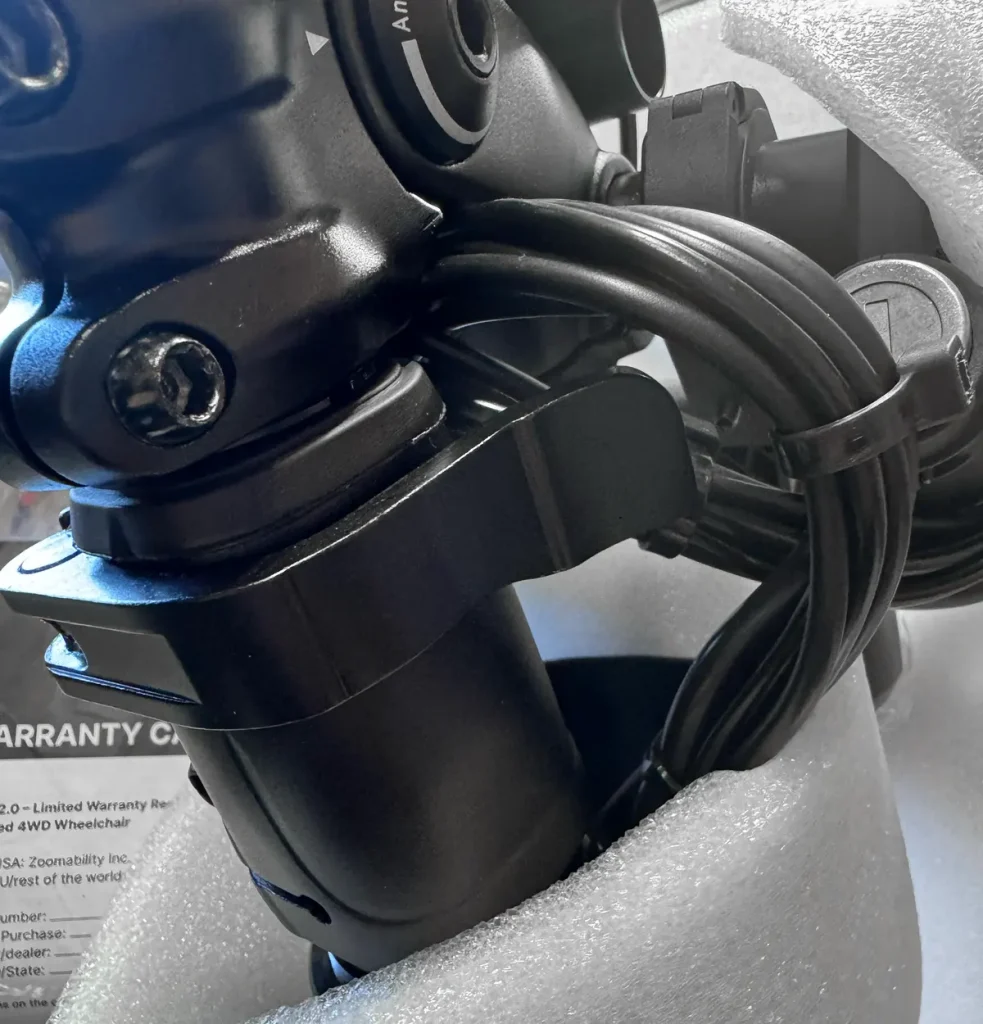

The height of the steering bar can be adjusted by releasing the handle on the right side of the steering bar. Make sure to fasten the handle tightly to ensure safe operation.

2. Footrest

The foot rest is for safety and comfort. Always maintain feet on the foot rest when riding. The foot rest can be adjusted to rider height by mounting it in the desired position using the pre-drilled adjustment holes.

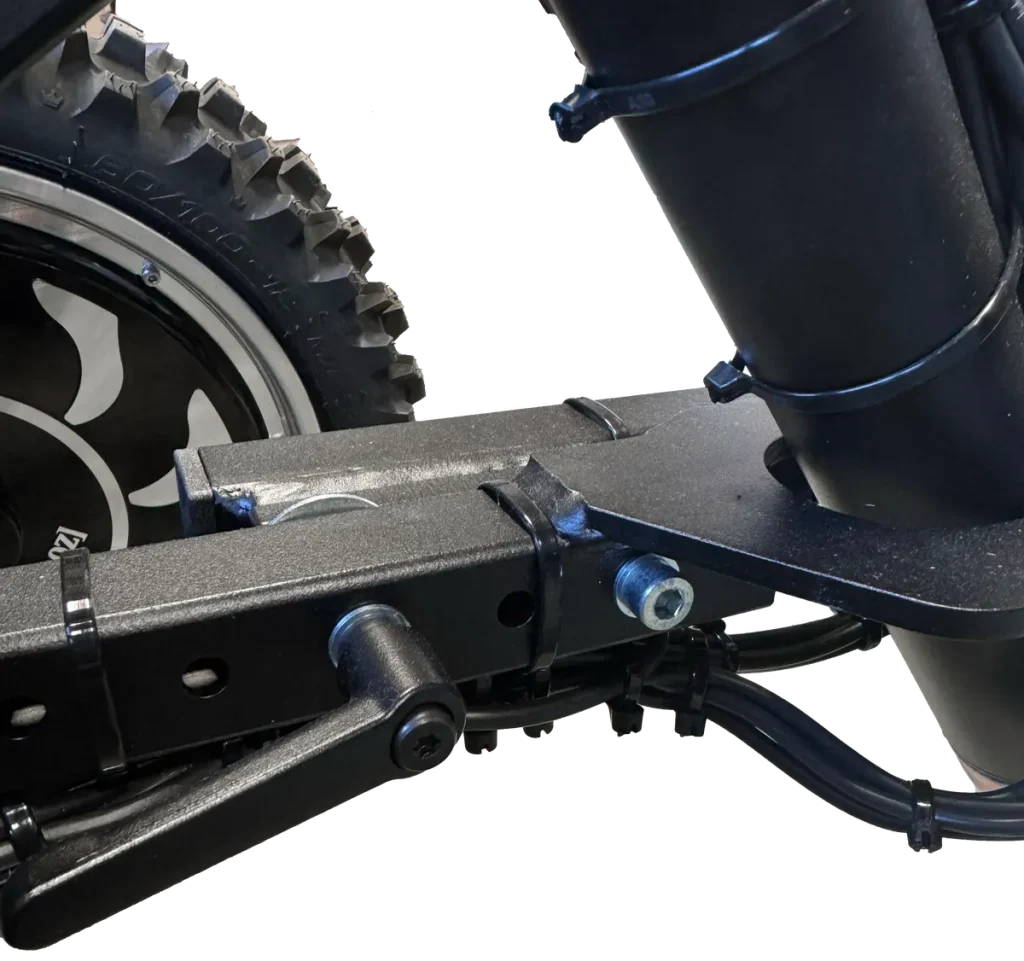

The footrest position can be adjusted by removing the 2 bolts on the right side of the frame. One is equipped with a fast-release handle to enable to quickly fold the footrest upwards for transport in order to reduce the overall lenght. Both bolts need to be removed in order to adjust the foot rest position. Take notice of the washers between the steel parts.

Note!
Hold the top of the foot rest when replacing it in riding position to avoid dropping it to the ground. Make sure the screws are tightly secured. By pulling the handle, the handle can be set to a horizontal position.

Warning
Avoid pinching your fingers between the foot rest and the frame when replacing the foot rest to riding position.

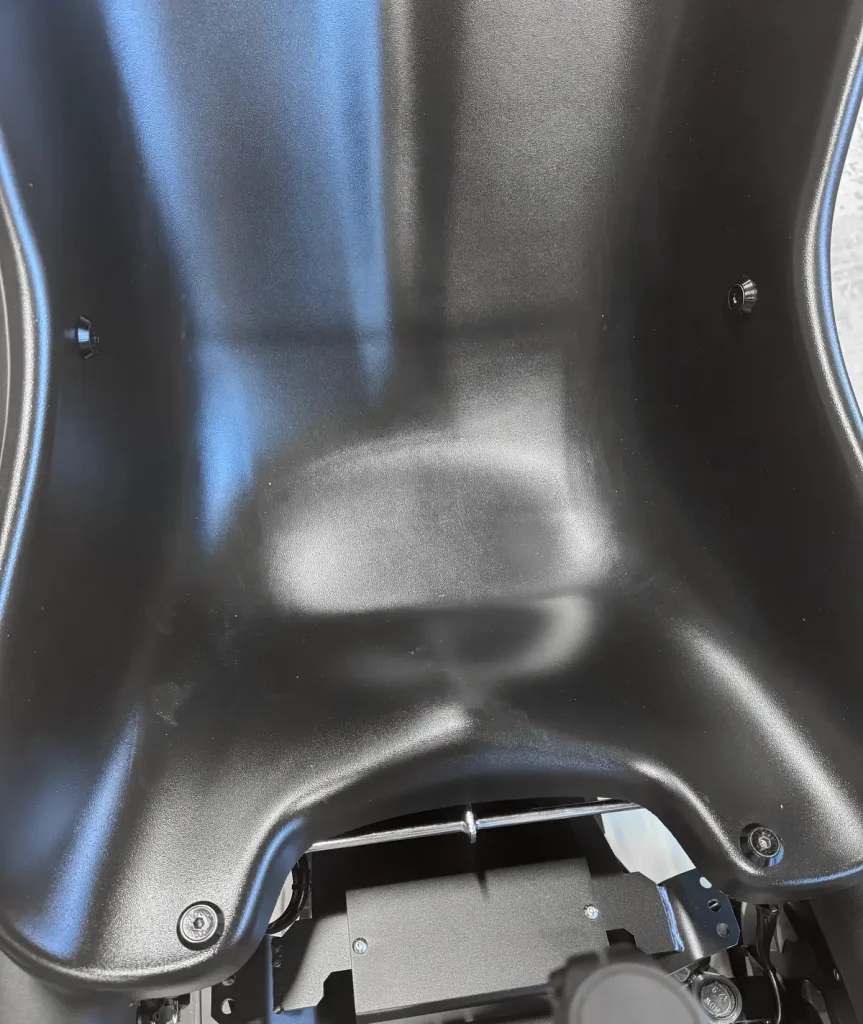

3. Seat

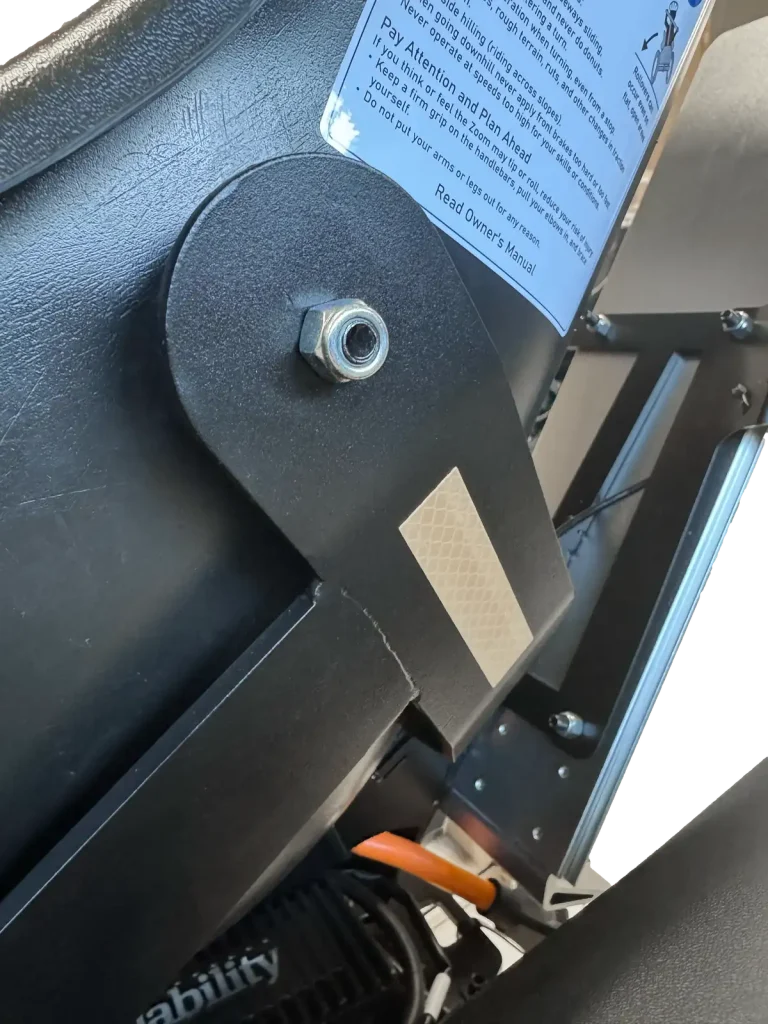

The seats position and angle can be adjusted to rider preference. If necessary the seat can be positioned closer or further from the steering column bu drilling new holes in the front of the seat. New holes can also be drilled in the side of the seat to adjust the angle of the seat.

Make sure to adjust the distance to the steering column before adjusting the angle
